PRECISION GRADE OPTICAL WINDOWS

Optical windows are used to separate two different environments while still allowing light to pass through. Advanced Optics manufactures optical windows made of low expansion borosilicate glass and fused silica up to 8 inches in diameter to meet various demanding applications. Surface flatness of λ/4 and λ/10 are available in low expansion borosilicate glass and λ/10 and λ/20 in fused silica. Custom coatings and sizes are available to meet your requirements and we offer free engineering services.

Many of our in-stock optical windows are manufactured from high purity synthetic fused silica. Fused silica provides superior transmission characteristics, a high degree of purity, exceptional environmental durability, and a low coefficient of thermal expansion.

Optical Window Specifications:

Surface Accuracy: Double Sided Diameter Fused Silica (Thickness)
λ/20 (0.000001") 25.4 (1") 12.7 (1/2")
λ/10 (0.000002") 25.4 (1") 12.7 (1/2")
λ/20 (0.000001") 50.8 (2") 15.9 (5/8")
λ/10 (0.000002") 50.8 (2") 15.9 (5/8")
λ/20 (0.000001") 76.2 (3") 15.9 (5/8")
λ/10 (0.000002") 76.2 (3") 15.9 (5/8")
λ/20 (0.000001") 101.6 (4") 19.1 (3/4")
λ/10 (0.000002") 101.6 (4") 19.1 (3/4")
λ/20 (0.000001") 127 (5") 19.1 (3/4")
λ/10 (0.000002") 127 (5") 19.1 (3/4")
λ/20 (0.000001") 152.4 (6") 25.4 (1")
λ/10 (0.000002") 152.4 (6") 25.4 (1")
λ/20 (0.000001") 203.2 (8") 33.8 (1.33")
λ/10 (0.000002") 203.2 (8") 33.8 (1.33")


Fused Silica Technical Data Sheet from Corning IncorporatedFused Silica Technical Data Sheet from Corning Incorporated (pdf)


PRECISION GRADE OPTICAL WINDOWS

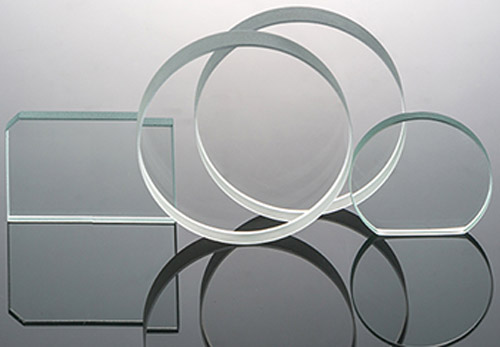

In addition to our in-stock round optical windows, Advanced Optics has the capability to manufacturer square and rectangular windows as well. We have the capability to provide custom shapes, apply bevels and even drill holes to meet your unique application.

Have a question? Give us call and tell us about your project. (262) 548-1155
